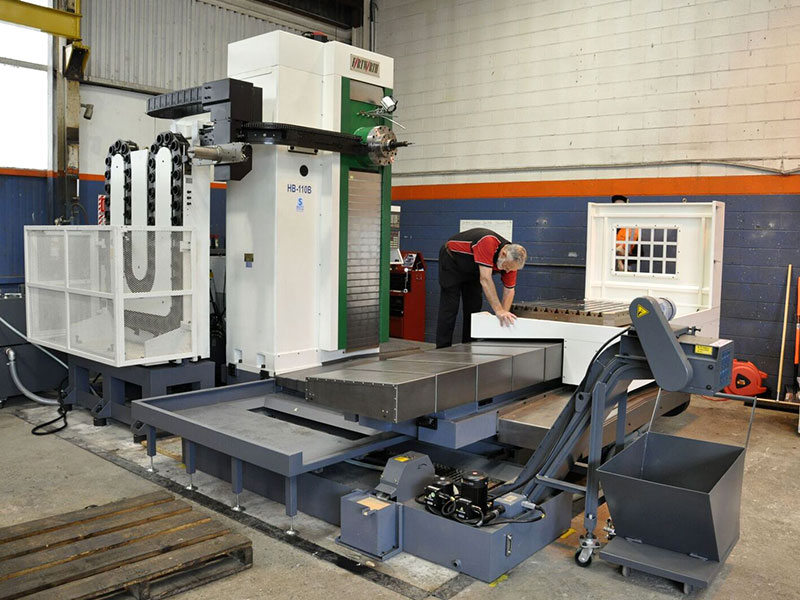

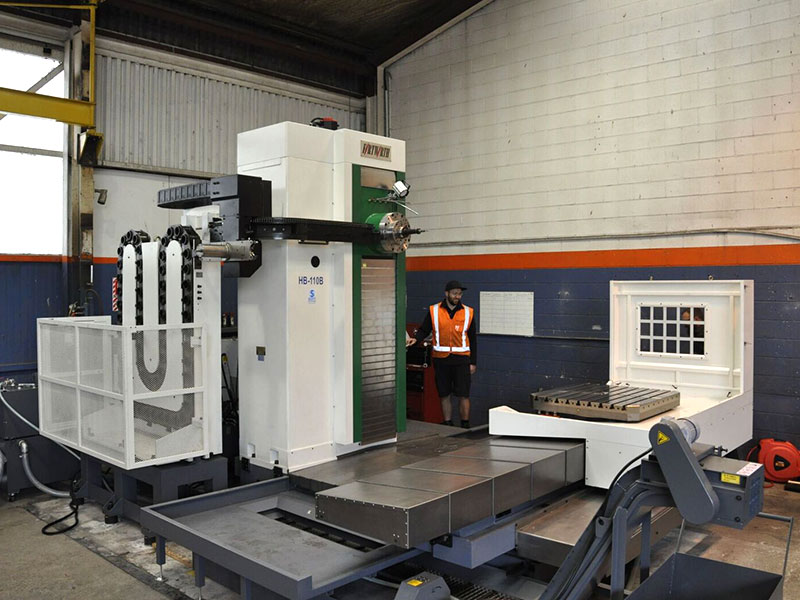

HB-110B CNC Horizontal Boring & Milling Machine: Technical Insights and Features #
Standards #
- Spindle oil cooler
- Centralized auto lubrication system
- Coolant system
- Air blow
- Heat exchanger for cabinet
- Work lamp
- Chip auger
- M30 automatic power off
- Portable MPG handwheel
- Alarm lamp
- Tool box with adjustment tools
- Leveling blocks and bolts
Optional Features #
- Coolant through spindle (20 bar pressure)
- Chip conveyor with bucket
- Spindle support
- Table splash guard
- Transformer for voltages other than 220V
- Right angle milling head
- Angle plate
- Oil skimmer
Technical Specifications #
| Item | Unit | HB-110B |
|---|---|---|
| Table | ||
| Table size | mm | 1,000 x 1,000 (39-3/8 x 39-3/8 inch) |
| T slot (Width x No. x Pitch) | mm | 22H8 x 9 x 100 (0.86 x 9 x 4 inch) |
| Max load capacity | kg | 3,000 (6,600 lbs) |
| Min. indexing unit | deg | 1° (360 divisions) |
| B axis rapid feed | rpm | 4 |
| Table height from ground | mm | 1,103 (43-7/16 inch) |
| Capacity | ||
| X axis travel | mm | 2,000 (78-3/4 inch) |
| Y axis travel | mm | 1,400 (55-3/32 inch) |
| Z axis travel | mm | 1,150 (45-1/4 inch) |
| W axis travel | mm | 500 (19-11/16 inch) |
| Spindle nose to table center | mm | -175 ~ 1,475 ( -6-7/8 ~ 58 inch) |
| Spindle center to table top | mm | 0 ~ 1,400 (0 ~ 55-3/32 inch) |
| Spindle | ||
| Spindle nose | mm | BT50 |
| Spindle diameter | mm | 110 |
| Output max. | kg-m | 135 |
| Spindle speed (2 ranges) | Lo-speed | rpm |
| Hi-speed | rpm | |
| Feed | ||
| Rapid X, Y, Z, W axis | m/min | 15 / 12 / 15 / 6 |
| Rapid table rotation | rpm | 4 |
| Feed rate of X, Y, Z axis | mm/min | 1 ~ 6,000 |
| Feed rate of W axis | mm/min | 1 ~ 4,000 |
| X, Y, Z axis ballscrew (Dia. / Pitch) | mm | 50 / 10 |
| W axis ballscrew (Dia. / Pitch) | mm | 40 / 10 |
| A.T.C. | ||
| Magazine capacity | pcs | 60 |
| Pull stud | MAS-P50T-1 | |
| Max. tool length | mm | 400 |
| Max. tool weight | kg | 25 |
| Max. tool diameter | mm | Ø125 / Ø250 (w/o adjacent tool) |
| Tool selection | Shortest path in sequence | |
| Tool change time (approx) | sec | 15 |
| Motors | ||
| Spindle motor | kW | 22 / 26 |
| Servo motor for X, Y, Z, B, W | kW | 7 / 6 / 7 / 4 / 7 |
| Centralized lubrication pump | W | 150 |
| Hydraulic pump | kW | 3.7 |
| Spindle oil cooler pump | kW | 1.95 |
| Coolant pump | kW | 1 |
| General Information | ||
| Pneumatic required | kg/cm2 | 6 |
| Coolant tank | L | 350 |
| Machine dimension | mm | 4,285 x 5,587 x 3,605 |
| Machine weight (Approx.) | kg | 21,000 (46,200 lbs) |
| CNC control | FS-0i-MF |
Design and specifications are subject to change without prior notice.
Additional Information #
- All machines are manufactured from high-quality cast iron, ensuring durability and precision.
- For the most comprehensive data and specifications, refer to the E-Catalog .
- To see the HB-110B in operation, visit the Video section .
